We provide for all measurements the right connection.
Whether it is for testing devices, testing media or for machine-mounted accessories – conductors are required simply everywhere. However, they must be robust, flexible, capable of handling heavy loads and be particularly long-lasting. For this reason, SKS manufactures measuring leads from high-quality material and carefully monitors the entire manufacturing process. After all, quality makes the difference! The basis of our measuring leads are finely stranded Cu-wires which comprise of several hundred strands depending on conductor size. The combination of high elastic insulation materials in a closely monitored production process is basis for the high quality of the SKS measuring leads. Measuring leads easily connect all components to each other, for example, testing media, measuring devices and machine-mounted accessories – measuring lead stands in training operations are therefore often quite full.

  • Highly flexible even at low temperatures
  • Up to 1,000 V/ CAT III, 32 A (IEC 61010)
  • Conductors made of silicone that are resistant to contact with soldering iron
  • Wire cross-sections up to 2.5 mm²
  • Length, colour and appropriate plugs in different variants
  • Double insulation for optimum protection
  • A built-in colour indicator (white) for identification of damages
  • sliding sleeve system for devices without safety sockets
  • Manufacturing of special types on request

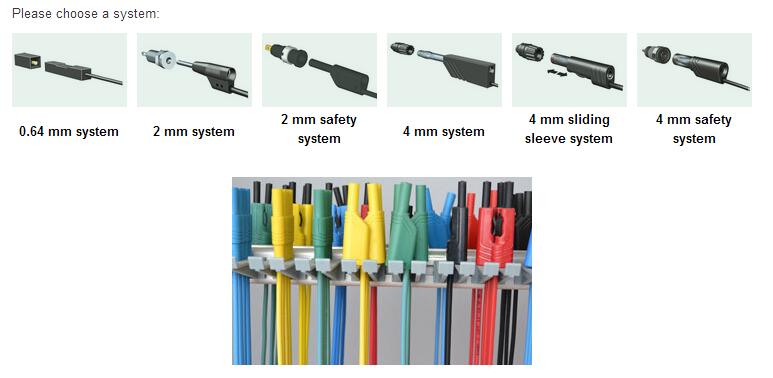

产品型号 Articlenummer 颜色 系统参数
BNC AL 0,64 9338440xx 0.64 mm system
MLN 25/1 9340581xx 黑,红,蓝,黄,绿 4 mm system
MLN 25/1 Au 9340587xx 黑,红,蓝,黄,绿 4 mm system
MLN 25/2,5 9340591xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 25/2,5 Au 9340597xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 50/1 9340601xx 黑,红,蓝,黄,绿 4 mm system
MLN 50/1 Au 9340607xx 黑,红,蓝,黄,绿 4 mm system
MLN 50/2,5 9340611xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 50/2,5 Au 9340617xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 100/1 9340621xx 黑,红,蓝,黄,绿 4 mm system
MLN 100/1 Au 9340627xx 黑,红,蓝,黄,绿 4 mm system
MLN 100/2,5 9340631xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 100/2,5 Au 9340637xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 150/1 9340641xx 黑,红,蓝,黄,绿 4 mm system
MLN 150/1 Au 9340647xx 黑,红,蓝,黄,绿 4 mm system
MLN 200/1 9340651xx 黑,红,蓝,黄,绿 4 mm system
MLN 200/1 Au 9340657xx 黑,红,蓝,黄,绿 4 mm system
MLN 200/2,5 9340661xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 200/2,5 Au 9340667xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLS WS 25/1 9340671xx 黑,红,蓝,黄,绿 4 mm safety system
MLS WS 200/1 9340691xx 黑,红,蓝,黄,绿 4 mm safety system
MLS GG 25/1 9340701xx 黑,红,蓝,黄,绿 4 mm safety system
MLS GG 25/2,5 9340711xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS GG 50/1 9340721xx 黑,红,蓝,黄,绿 4 mm safety system
MLS GG 50/2,5 9340731xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS GG 100/1 9340741xx 黑,红,蓝,黄,绿 4 mm safety system
MLS GG 100/2,5 9340751xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS GG 200/1 9340761xx 黑,红,蓝,黄,绿 4 mm safety system
MLS GG 200/2,5 9340771xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS WG 25/1 9340781xx 黑,红,蓝,黄,绿 4 mm safety system
MLS WG 25/2,5 9340791xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS WG 50/1 9340801xx 黑,红,蓝,黄,绿 4 mm safety system
MLS WG 50/2,5 9340811xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS WG 100/1 9340821xx 黑,红,蓝,黄,绿 4 mm safety system
MLS WG 100/2,5 9340831xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS WG 200/1 9340841xx 黑,红,蓝,黄,绿 4 mm safety system
MLS WG 200/2,5 9340851xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS WS 25/2,5 9340861xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS WS 50/2,5 9340871xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS WS 100/2,5 9340881xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLS WS 200/2,5 9340891xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm safety system
MLN SIL 25/1 9340901xx 黑,红,蓝,黄,绿,黄/绿 4 mm system
MLN SIL 50/1 9340911xx 黑,红,蓝,黄,绿,黄/绿 4 mm system
MLN SIL 100/1 9340921xx 黑,红,蓝,黄,绿,黄/绿 4 mm system
MLN SIL 150/1 9340931xx 黑,红,蓝,黄,绿,黄/绿 4 mm system
MLN SIL 200/1 9340941xx 黑,红,蓝,黄,绿,黄/绿 4 mm system
MLS WS 100/1 9340951xx 黑,红,蓝,黄,绿 4 mm safety system
PL 2600 S W 9341581xx 黑，红 4 mm safety system
PL 2600 S 9341591xx 黑，红 4 mm safety system
MAL N 4-0,64/100-0,25 9341601xx 黑，红 0.64 mm system
MLS SIL WS 50/1 9341681xx 黑,红,蓝,黄,绿 4 mm safety system
MLS SIL WS 200/1 9341691xx 黑,红,蓝,黄,绿 4 mm safety system
MLS SIL GG 50/1 9341721xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL GG 100/1 9341741xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL GG 200/1 9341761xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL WG 50/1 9341801xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL WG 100/1 9341821xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL WG 200/1 9341841xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS SIL WS 100/1 9341951xx 黑,红,蓝,黄,绿 4 mm safety system
PL 2600 SIL S 9342591xx 黑，红 4 mm safety system
MLN 150/2,5 9345071xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
MLN 150/2,5 Au 9345077xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 4 mm system
SML 100/1 9733881xx 黑,红,蓝,黄,绿 4 mm system
MVL 2/25 9735941xx 黑，红 2 mm system
MVL 2/50 9735951xx 黑，红 2 mm system
MVL 2/100 9735961xx 黑，红 2 mm system
MKL 0,64/25-0,25 9736041xx 黑，红 0.64 mm system
MLB 25/1 V 9736441xx 黑,红,蓝,黄,绿 4 mm sliding sleeve system
MLB 50/1 V 9736451xx 黑,红,蓝,黄,绿,黄/绿 4 mm sliding sleeve system
MLB 100/1 V 9736461xx 黑,红,蓝,黄,绿,黄/绿 4 mm sliding sleeve system
MLB 200/1 V 9736471xx 黑,红,蓝,黄,绿 4 mm sliding sleeve system
TW 120 BAN 9743300xx 4 mm system
TKL 065 BAN 9743400xx 4 mm system
MAL S WS 2-4 100/1 9751631xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 2 mm safety system/ 4 mm safety system
MVL S WS 25/1 Au 9756947xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 2 mm safety system
MVL S WS 50/1 Au 9756957xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 2 mm safety system
MVL S WS 100/1 Au 9756967xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 2 mm safety system
MVL S WS 200/1 Au 9756987xx 黑,红,蓝,黄,绿,棕色,灰,白,紫,黄/绿 2 mm safety system
MLS WS 50/1 9340681xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
MLS WS 150/1 9341111xx 黑,红,蓝,黄,绿,黄/绿 4 mm safety system
PL 2600 SIL S W 9342581xx 黑，红 4 mm safety system



北京中达信泰科技有限公司专业批发德国SKS测量测试系统各型号产品，如需了解更多SKS产品信息，请致电我公司。

了解更多产品信息也可登录  德国SKS测量测试系统网站
